Customizable BIPV Solar Panels Class A Mono Solar Cell 200watt 320W

Product Categories
Wuhan Rixin Technology Co., Ltd.
Contact Now

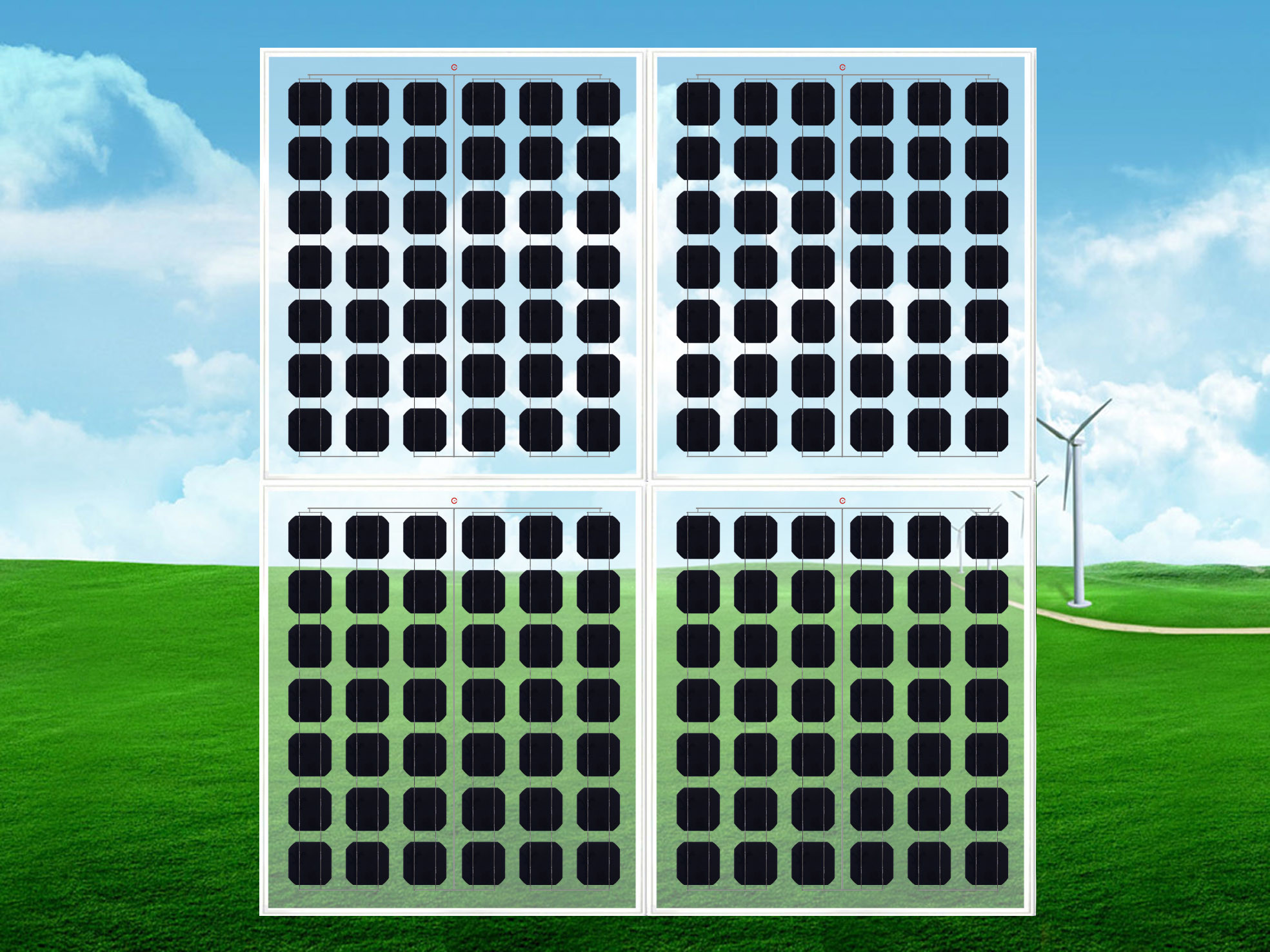

Customizable BIPV Solar Panels Class A Mono Solar Cell 200watt 320W

  • 1
  • 2
  • 3

Brand Name : Rixin

Model Number : RXJJ-320

Certification : TUV CE

Place of Origin : China

MOQ : 50 pieces

Price : BIPV Solar Panels

Payment Terms : L/C, T/T

Supply Ability : 3GW/year

Delivery Time : 7-20 working days

Packaging Details : in carton

Junction box : IP67 TUV/UL certificated,IP 68 Rated

Warranty : 25 Years Output Power Guarantee

Module Type : BIPV Solar Panel

Max. power : 320W

Connector : MC4/MC4 Compatible

Product name : CETC BIPV Double Glass Solar Panel 300W Mono

Application : Building,Solar Panel System For Home,Industrial,Home Commercial Solar System,commercial

Oem order : Acceptable

Maximum system voltage（V） : 1500

Fault structure（mm） : 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass

Module efficiency : 18.57%

Contact Now

Customizable BIPV Solar Panels Class A Mono Solar Cell 200watt 320W Solar Module



Self-branded

Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

Industry Experience

Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

Competitive products

High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

Professional Team

Professional saling service and after-sale service.

R&D staff is over 10% employees.

Perfect logistics and warehousing services.



158.75mm PERC mono bifacial solar panel-DDM(P)315~320
Electrical performance parameters
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Model DDM(P)315 DDM(P)320
Maximum power(Pm/Wp) 315 320
Open circuit voltage (Voc/V) 40.2 40.4
Short circuit current (Isc/A) 9.91 10.02
Peak power voltage (Vmp/V) 33.3 33.4
Peak power current (Imp/A) 9.46 9.58
Module efficient(%) 18.8 19.1
Electrical performance parameters (back)
Model DDM(P)315 DDM(P)320
Maximum power (Pmax/W) 237 241
Open circuit voltage (Voc/V) 39.9 40.1
Short circuit current (Isc/A) 7.58 7.64
Peak power voltage (Vmp/V) 34.2 34.3
Peak power current (Imp/A) 6.95 7.03
Module efficient(%) 14.1 14.4
Different power gains (take 320W as an example)
Power gain 5% 10% 15% 25%
Maximum power (Pmax/W) 336 352 368 400
Open circuit voltage (Voc/V) 40.4 40.4 40.4 40.4
Short circuit current (Isc/A) 10.66 11.17 11.68 12.69
Peak power voltage (Vmp/V) 33.4 33.4 33.4 33.4
Peak power current (Imp/A) 10.06 10.54 11.02 11.98
Mechanical parameters
Cell Nos & array 60(6*10)
Diodes No. 3
Junction box/Connector IP68, split junction box
Cable 4mm2, 300mm wire length, the length can be customized
Module weight (kg) 30
Module dimension (L*W*H)(mm) 1676*1002*7.5 (including junction box thickness 25)
Packing 33pcs/pallet
Temperature Coefficient
Short circuit current (Isc) +0.05%/℃
Open circuit voltage (Voc) -0.29%/℃
Peak power (Pmax) -0.39%/℃
Quality parameters
Component operating temperature range (℃) -40~+85

Tpye Application Feature
  roofing Curtain wall

Photovoltaic wind

ow

 Sunroom Canopy/sunshade Fence

Assembled photovoltaic tile



√





√





Waterproof, Easy to installation and maintenance



Crystal silicon double-sided laminated glass



√



√





√



√



√



Double sided power generation, high power generation and long power generation life



Ordinary crystal silicon laminated glass



√



√





√



√



√



Long power generation life



Film laminated glass



√



√







√



√



√



Great appearance, adjustable light transmittance



Crystal silicon double-sided insulating glass





√



√



√





Double sided power generation, high power generation and long power generation life



Ordinary crystalline silicon insulating glass





√



√



√





Excellent thermal insulation performance



Membrane insulating glass





√



√



√





Great appearance, adjustable light transmittance



High efficiency crystalline silicon module



√





Building Additions





Customizable BIPV Solar Panels Class A Mono Solar Cell 200watt 320WCustomizable BIPV Solar Panels Class A Mono Solar Cell 200watt 320WCustomizable BIPV Solar Panels Class A Mono Solar Cell 200watt 320W
